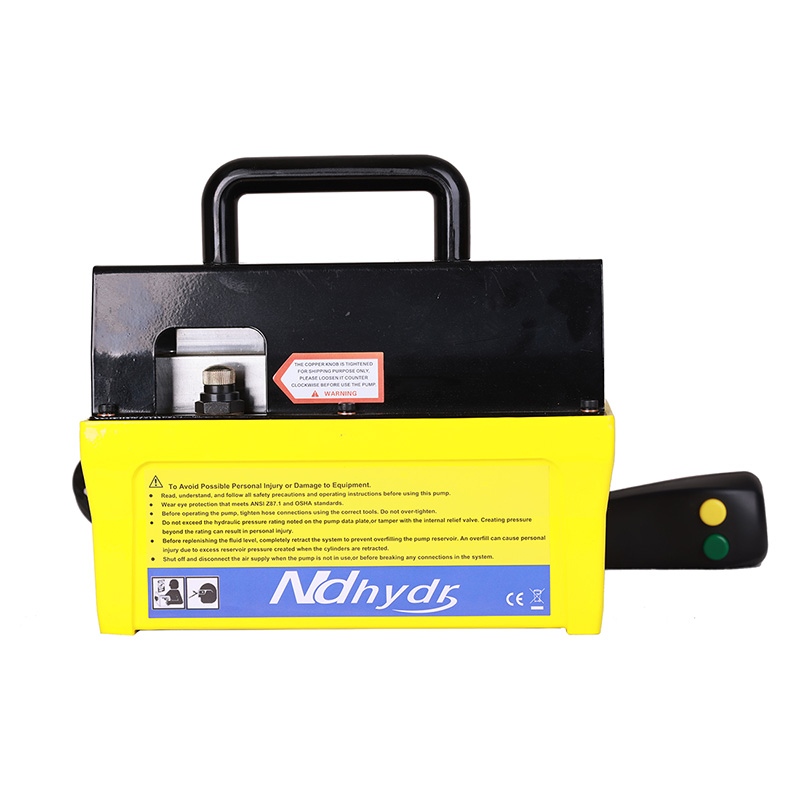

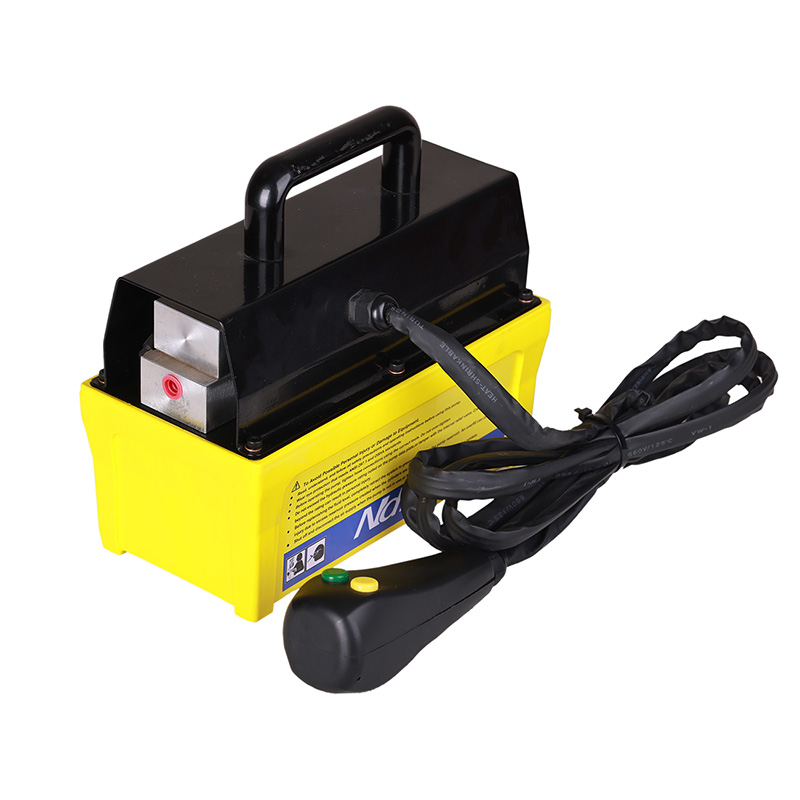

1.6L Air Hydraulic Pump with Remote Control
1. For use with a variety of rams, presses and hydraulic tools operating up to 10,000 psi
2.Air exhaust muffler for quiet pumping of air motor
3.Air and oil inlet filters for reducing risk of damage from contamination.
4.Internal loading limiting device to prevents overload.

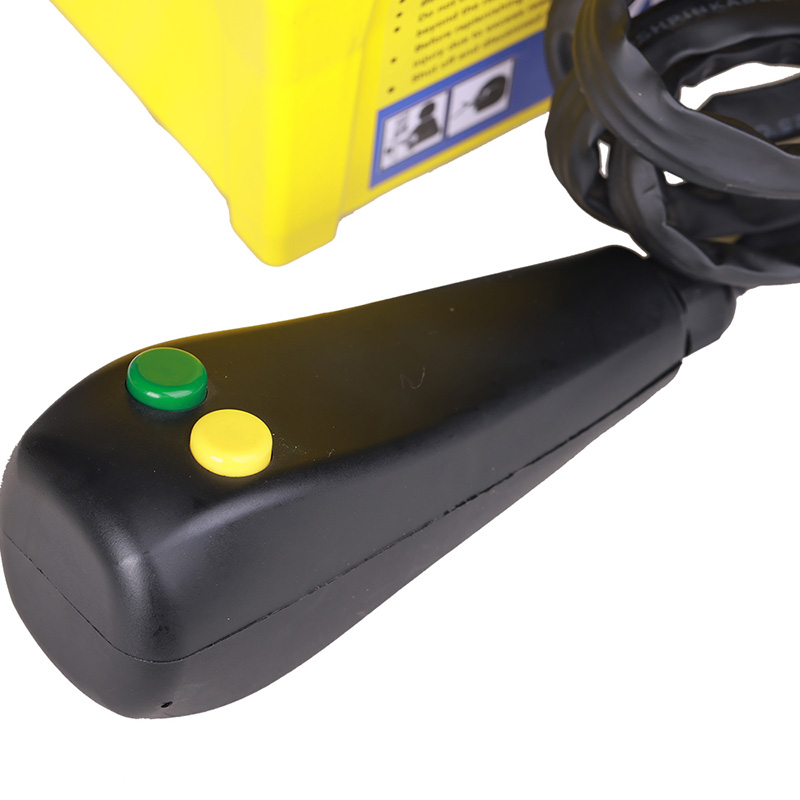

5.Operated by remote control will let the user active more freely.
Specification:
| Item NO. | NAP002R |
| Usable Oil Volume | 1.6L |
| Pressure Rating | 70Mpa ( 10,000psi) |
| Air Source Pressure | 0.7~1.0 Mpa |
| Flow Rate | 0.8 ( no load) |
| 0.16 ( load) | |
| Reservior Construction | Steel |
| Output Oil Thread | 3/8-18 NPT |
| Air input Thread | 1/4-18NPT |
| Operational Manner | Remote Control |
| Weight | 8 kgs |

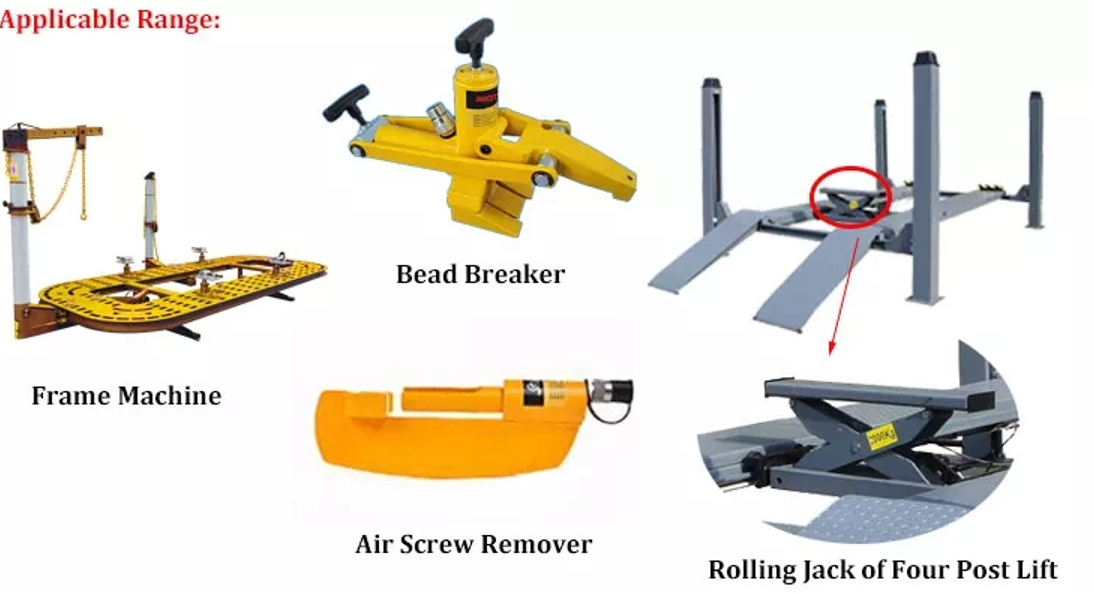

Application:
| -. APPLICATION: | |
| 1.) Heavy Machinery Rigging and Moving | |
| 2.) Auto Repair Oil Rigging | |
| 3.) Machine Maintenance | |
| 4.) Oil Drilling platforms |
