ND6225C Heavy Duty Tires Bead Breaker for Tractor Truck with 3 stage

Short Description:

The NDhydr Combi Bead Breaker is a 10 ton portable bead breaker that is designed to work on most rims up to 25 inch. It is expressly intended to be used as an aid in breaking the bead seal between a tire and it’s one piece wheel for the purpose of resealing bead seal, replacement of tire or wheel, replacing tire valve, tire tube etc.. Most popular tool for breaking beads on all agricultural wheels


Product Detail

Product Video

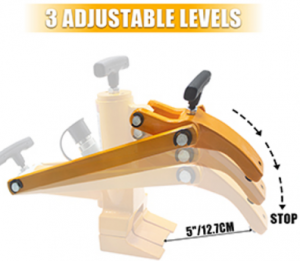

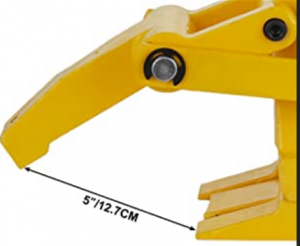

1.Work range up to 5 inch. Especially for this breaker, it could adjust the work shift to 180mm, 190mm and 200mm.



2.Works on single, 2 and 3-piece wheels

3.It delivers 10,000 lbs. of force in seconds to break beads smoothly under hydraulic action.

4.It can perform greatly on the tires by loosening tire bead from the rim with leverage without removing the wheels.

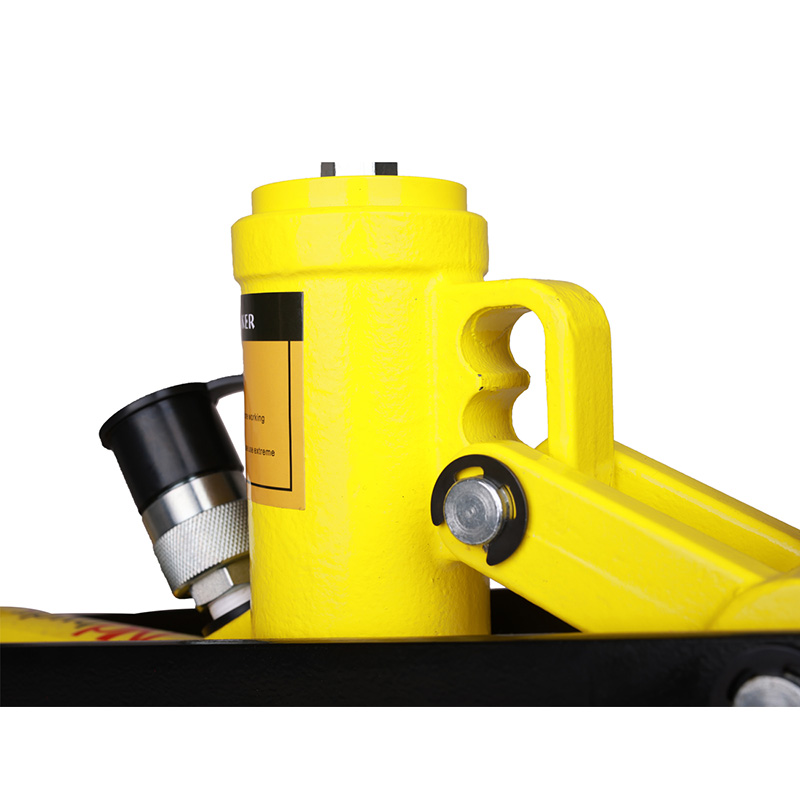

5.Chrome pistion rod with a special heat treatment, corrosion resistance, wear resistance, high life.

6.Back spring design automatically rest smoothly, accurately.



Item No.                                                 ND6225C
Capacity 10 Ton
Pressure 70 Mpa
Working Range of the Claw 180mm/190mm/200mm
Working Range of the pushing foot 95mm
Weight 17.5kgs
Packing Size 39x39x16 cm  1pc/ctn
