NC102 10Ton 2 Inch Single Acting Hydraulic Cylinder
1.10 US Ton Capacity. 2″ Stroke

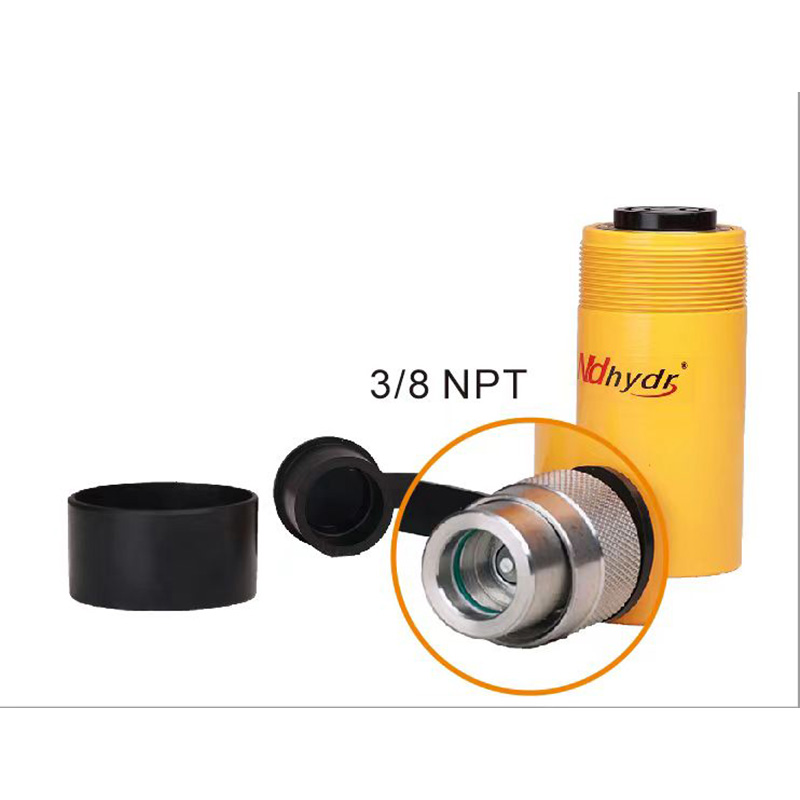

2.Connector Type: 3/8″ NPT quick hydraulic coupler with dust cap
3.Max Pressure 10,000 PSI. Single acting – Pressure extend, Spring return.
4.Durable baked enamel finish, beautiful and corrosion resistance.
5.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

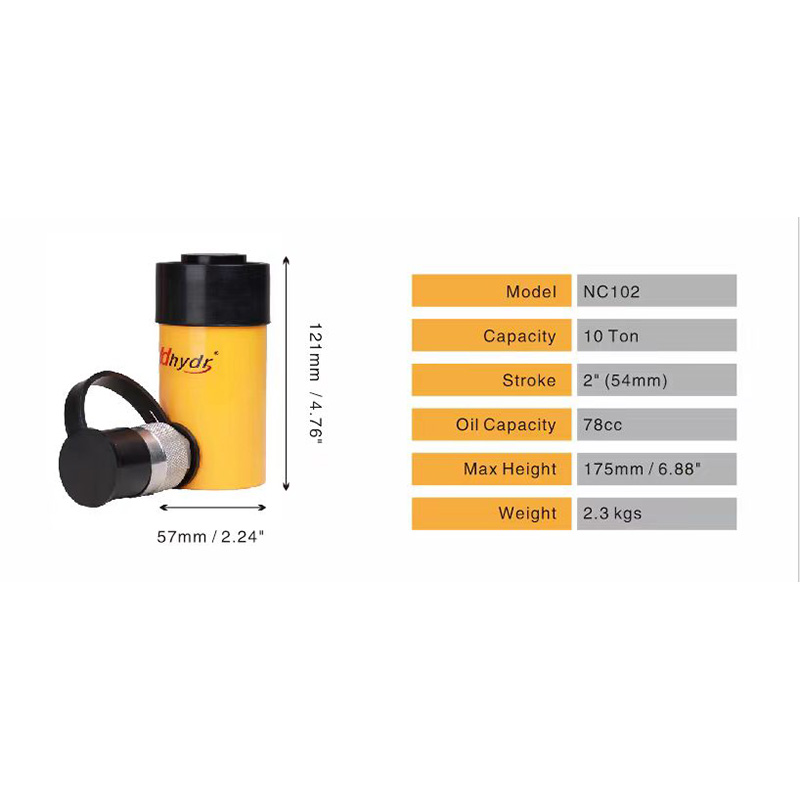

Technical Details
| Item No.: | NC102 |
| Load Capacity | 10 tons |
| Stroke | 54mm (2”) |
| Collapsed Height | 121 mm |
| Extended Height | 175mm |
| Weight: | 2.3kgs |
| Packing size: | 18x16x8cm |
