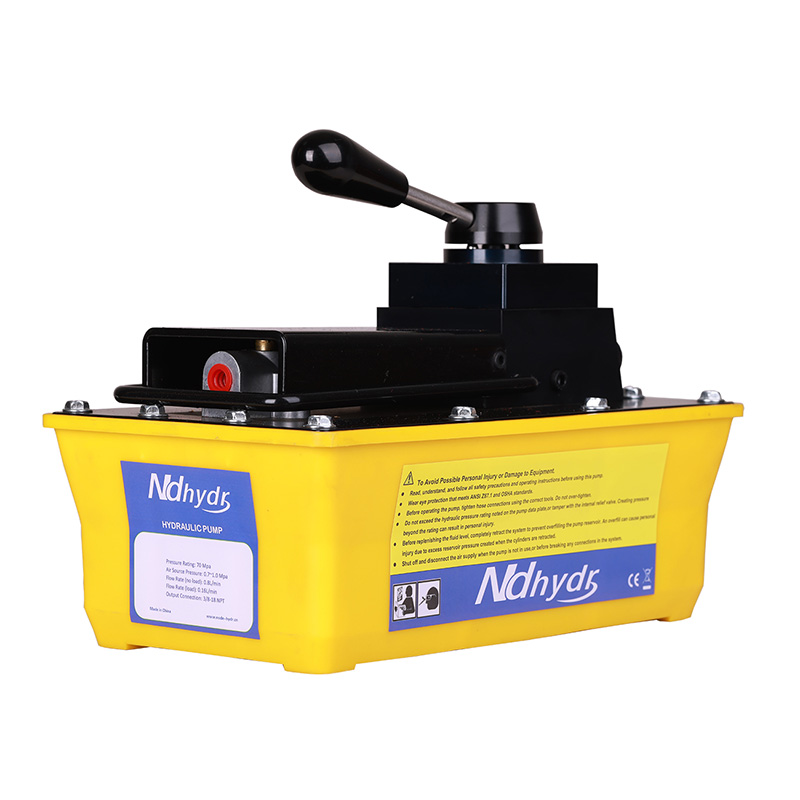

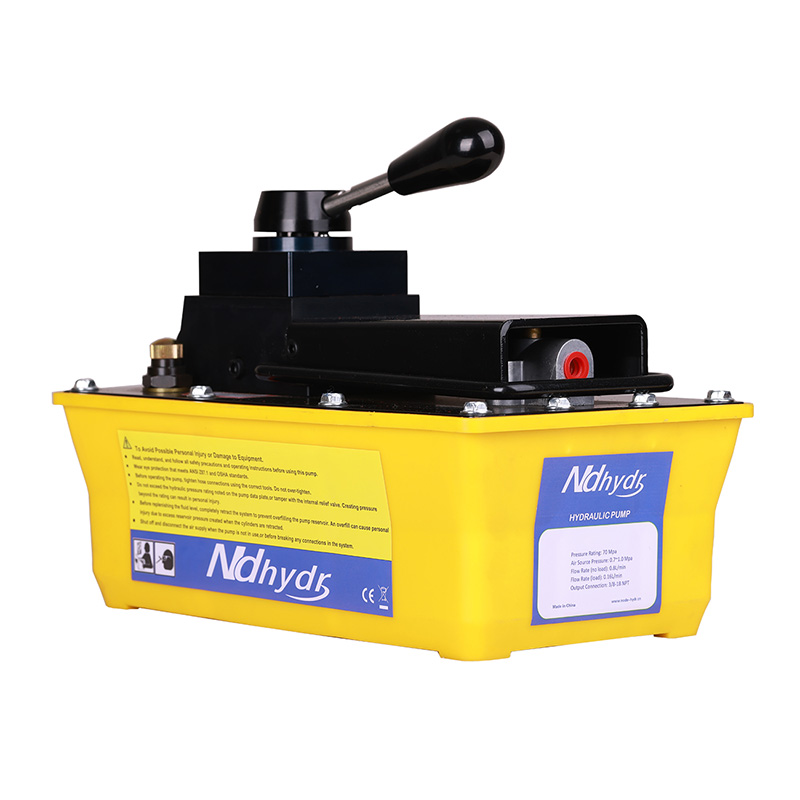

2.3L Air Hydraulic Pump with Double Acting

2.3L Air Hydraulic Pump with Double Acting
  • 2.3L Air Hydraulic Pump with Double Acting
  • 2.3L Air Hydraulic Pump with Double Acting
  • 2.3L Air Hydraulic Pump with Double Acting
  • 2.3L Air Hydraulic Pump with Double Acting
  • 2.3L Air Hydraulic Pump with Double Acting

Short Description:

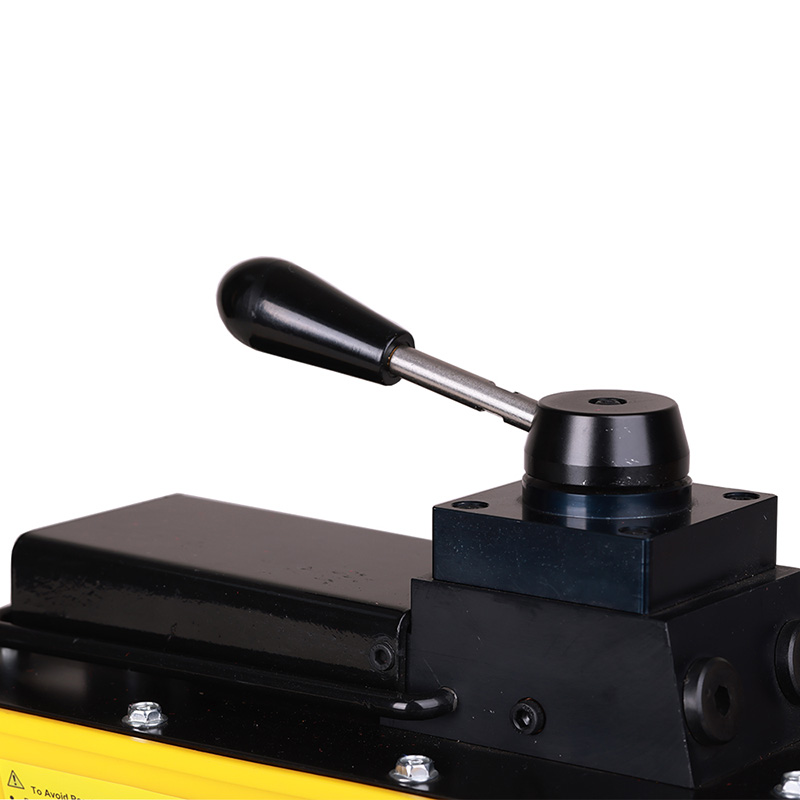

This Air Hydraulic Pump comes with double oil line, 10,000psi pressure, which is more widely application than the single acting pump. The double oil line enables it to be suitable for the double-acting cylinders, can be widely used for lifting and loading and unloading of heavy machinery, automatic repairs, oil drilling platforms, and machine maintenance. Easy to operate, press down the handle to let the pump work, stop pressing the handle will stop and hold the pressure, lift up the pedal will release the pressure. The thread for connecting oil hose is 3/8-18 NPT, for connecting air source is 1/4-18 NPT.


Download as PDF

Product Detail

Product Video

1. For use with a variety of rams, presses and hydraulic tools operating up to 10,000 psi

2.Air exhaust muffler for quiet pumping of air motor

3.Air and oil inlet filters for reducing risk of damage from contamination.

4.Internal loading limiting device to prevents overload.

5.Double oil-way suits for double acting rams.



Specification:

Item NO. NAP001D
Usable Oil Volume 2.3L
Pressure Rating 70Mpa ( 10,000psi)
Air Source Pressure 0.7~1.0 Mpa
Flow Rate 0.8 ( no load)
0.16 ( load)
Reservior Construction Steel
Output Oil Thread 3/8-18 NPT
Air input Thread 1/4-18NPT
Operational Manner Foot and Manual Reversing Control
Weight 14 kgs



Application:

-. APPLICATION:
1.) Heavy Machinery Rigging and Moving
2.) Auto Repair Oil Rigging
3.) Machine Maintenance
4.) Oil Drilling platforms
