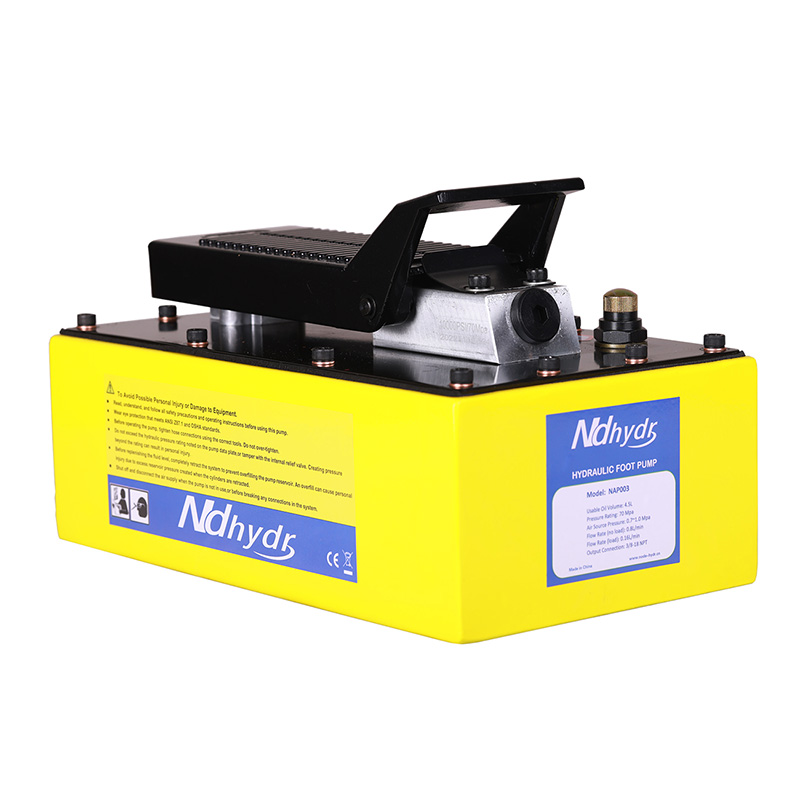

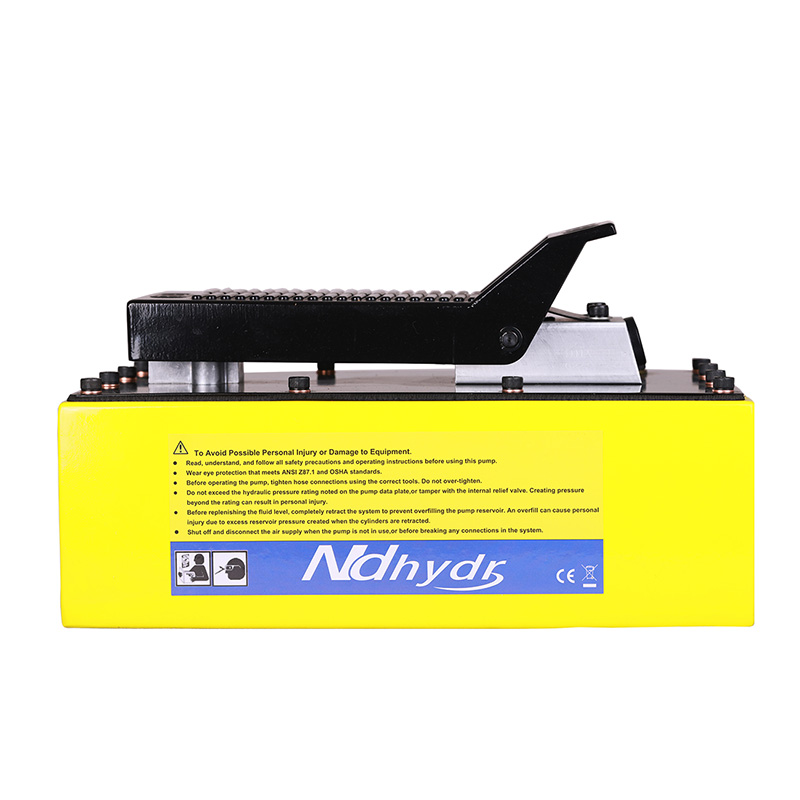

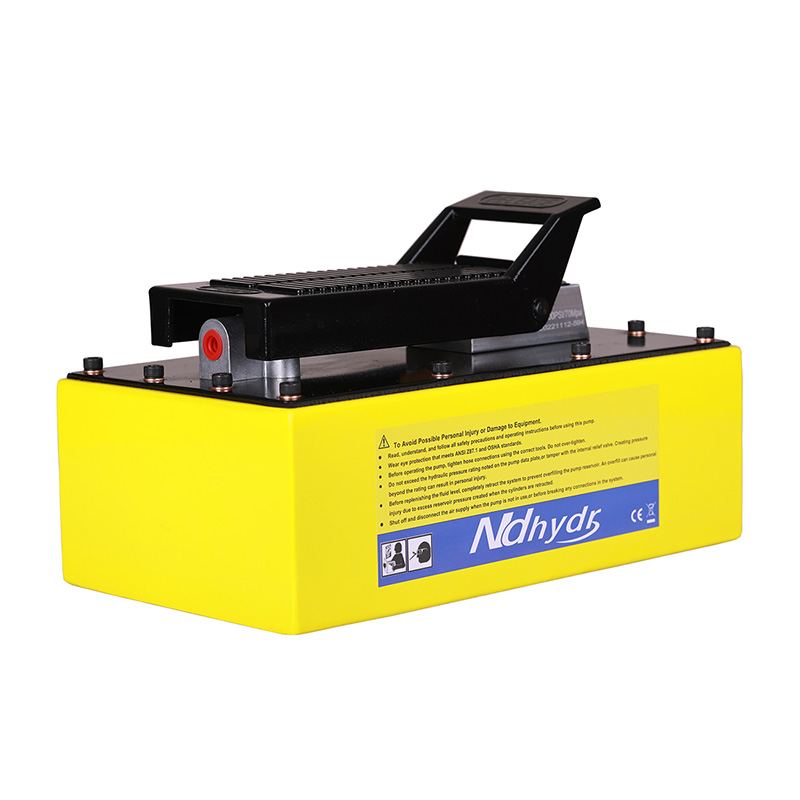

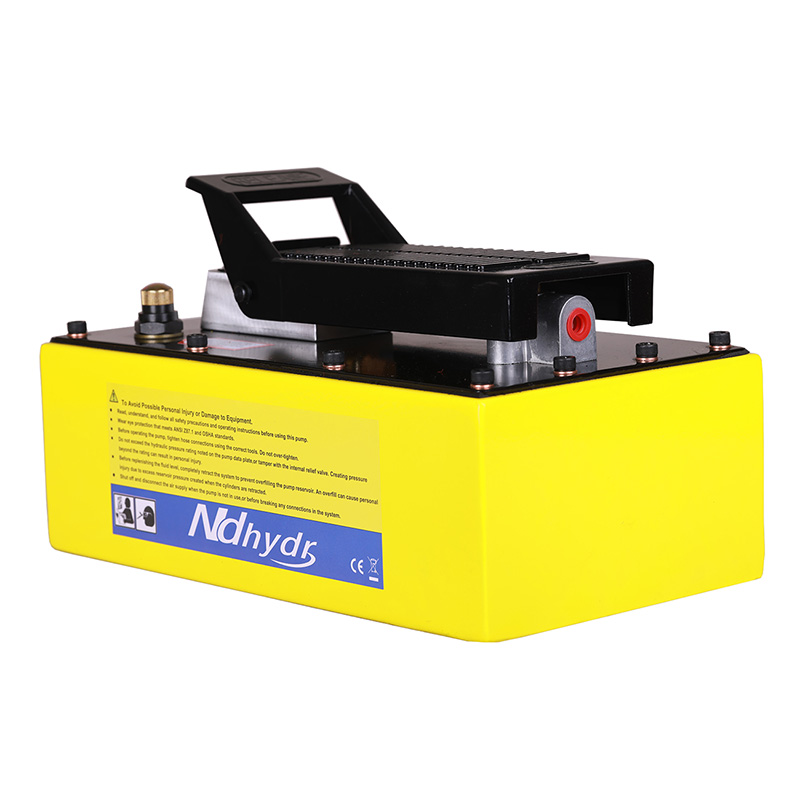

4.5L Air Hydraulic Pump with Steel Reservior

Short Description:

This Air Hydraulic Pump comes with 10,000 PSI for wide application, could be workable for hydraulic cylinder, tire bead breaker, hydraulic lift, autobody frame machines and so on. It’s an ideal power source for kinds of hydraulic tools application develops 10,000 PSI of hydraulic pressure at 100 PSI air pressure. Oil leakage of this hydraulic pump is very rare. Easy to operate, press down the pedal to let the pump work, stop pressing the pedal will stop and hold the pressure, lift up the pedal will release the pressure. The thread for connecting oil hose is 3/8-18 NPT, for connecting air source is 1/4-18 NPT.


Product Detail

Product Video

1. For use with a variety of rams, presses and hydraulic tools operating up to 10,000 psi

2.Air exhaust muffler for quiet pumping of air motor

3.Air and oil inlet filters for reducing risk of damage from contamination.

4.Internal loading limiting device to prevents overload.



Specification:

Item NO. NAP003
Usable Oil Volume 4.5L
Pressure Rating 70Mpa ( 10,000psi)
Air Source Pressure 0.7~1.0 Mpa
Flow Rate 0.8 ( no load)
0.16 ( load)
Reservior Construction Steel
Output Oil Thread 3/8-18 NPT
Air input Thread 1/4-18NPT
Weight 10.5 kgs



Application:

-. APPLICATION:
1.) Heavy Machinery Rigging and Moving
2.) Auto Repair Oil Rigging
3.) Machine Maintenance
4.) Oil Drilling platforms
