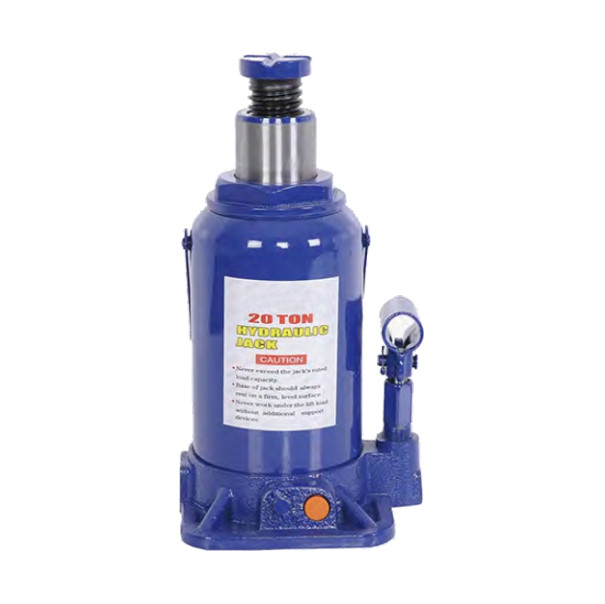

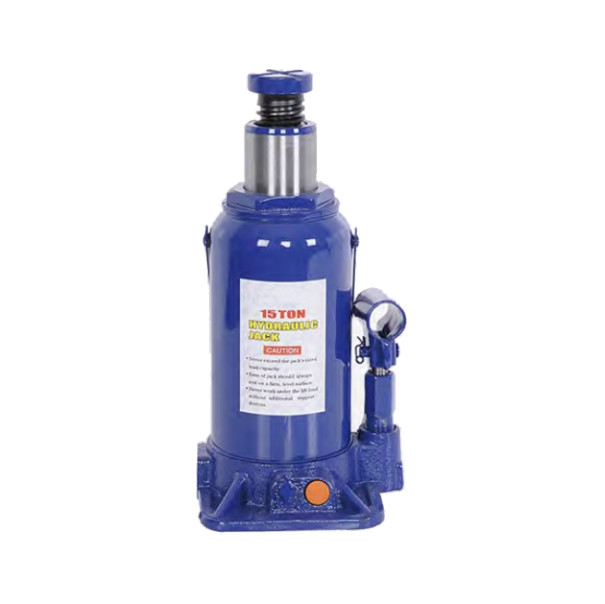

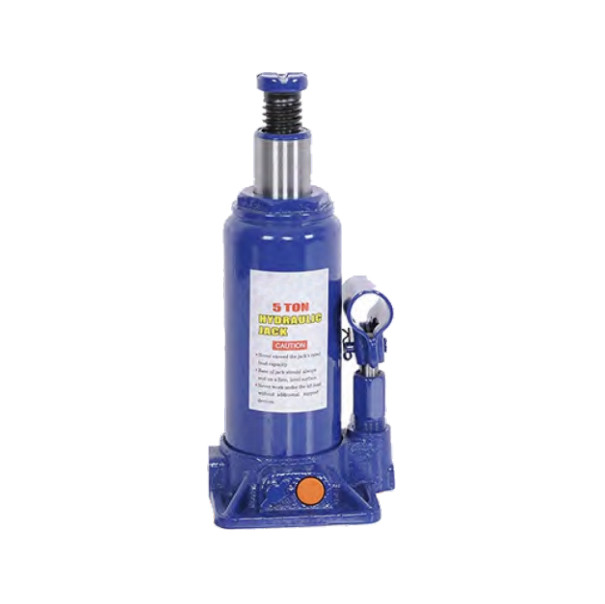

NDBJ Series Hydraulic Bottle Jack
1.Adjustable screw saddle provides additional lifting ranges with support and stability.
2.Wide, rugged base provides stability and strength.
3.All critical stress points are reinforced for added durability and dependability.
4.Meet CE/GS standards
5.Ideal for auto, truck service, farm, and shop use.
Specificataion:
| Model | Lifting Wt | Min.H | Lifting.H | Adjust.H | Max.H | N.W | Package | Packing Size | Qty/Ctn | G.W |
| ton | mm | mm | mm | mm | kg | cm | pcs | kg | ||
| NDBJ-2L | 2 | 148 | 82 | 50 | 280 | 2.2 | Color Box | 52x25.5x19 | 10 | 22.5 |
| NDBJ-2 | 2 | 158 | 90 | 60 | 308 | 2.4 | Color Box | 52x25.5x19 | 10 | 24.5 |
| NDBJ-3 | 3 | 195 | 125 | 60 | 380 | 3.4 | Color Box | 46x26.5x22.5 | 8 | 28 |
| NDBJ-4 | 4 | 195 | 125 | 60 | 380 | 3.4 | Color Box | 46x26.5x22.5 | 8 | 28 |
| NDBJ-5 | 5 | 197 | 125 | 60 | 382 | 4.4 | Color Box | 37x27.5x22.5 | 6 | 27 |
| NDBJ-6 | 6 | 197 | 125 | 60 | 382 | 4.4 | Color Box | 37x27.5x22.5 | 6 | 27 |
| NDBJ-8 | 8 | 185 | 115 | 60 | 360 | 4.7 | Color Box | 29.5x27.5x20 | 4 | 19.5 |
| NDBJ-10 | 10 | 205 | 125 | 60 | 390 | 5.6 | Color Box | 30.5x29.5x24 | 4 | 23 |
| NDBJ-12 | 12 | 215 | 125 | 60 | 400 | 6.9 | Color Box | 30.5x16.5x24 | 2 | 14.5 |
| NDBJ-15 | 15 | 225 | 140 | 60 | 425 | 7.5 | Color Box | 31.5x17x24.5 | 2 | 15.5 |
| NDBJ-16 | 16 | 225 | 140 | 60 | 425 | 7.5 | Color Box | 31.5x17x24.5 | 2 | 15.5 |
| NDBJ-20 | 18 | 244 | 145 | 60 | 449 | 10.5 | Color Box | 34.5x19.5x27 | 2 | 21.5 |
