NC104 10Ton 4 Inch Single Acting Hydraulic Cylinder

Short Description:

NDhydr 10t hydraulic ram jack is with steady quality, the situation of oil leakage is very rare.The 10T hydraulic cylinder is with 4.13 inch (105mm) stroke, would be suitable for many of the hydraulic lift application.There is mounting hole on the bottom of the hydraulic ram, the distance between the 2 hole is 1.53 inch (39mm).3/8-18 NPT female coupler is included, easy to operate.


Product Detail

Product Video

1.10 US Ton Capacity. 4″ Stroke

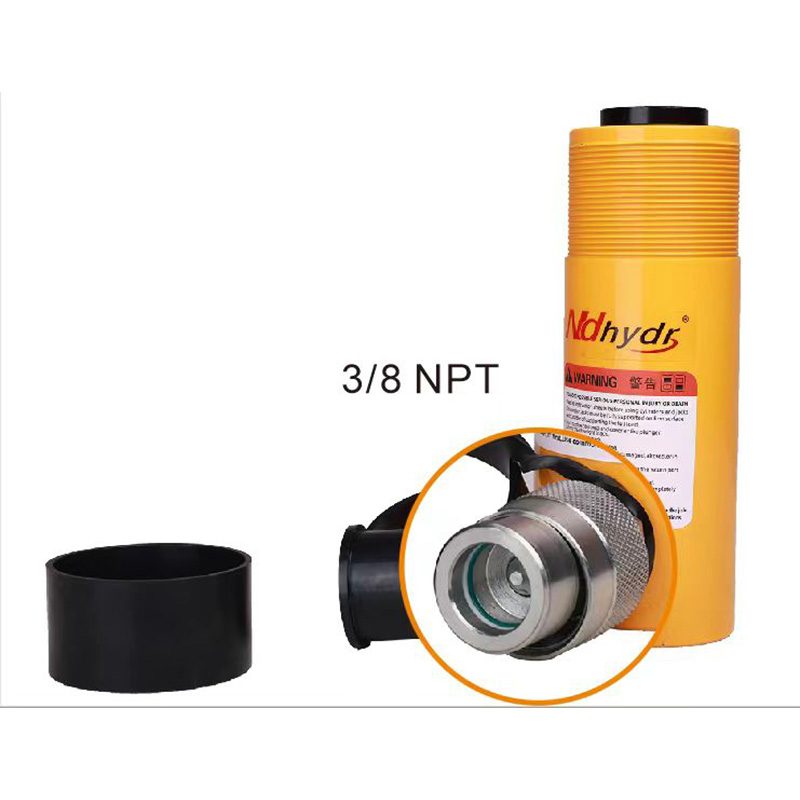

2.Connector Type: 3/8″ NPT quick hydraulic coupler with dust cap

3.Max Pressure 10,000 PSI. Single acting – Pressure extend, Spring return.

4.Durable baked enamel finish, beautiful and corrosion resistance.

5.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

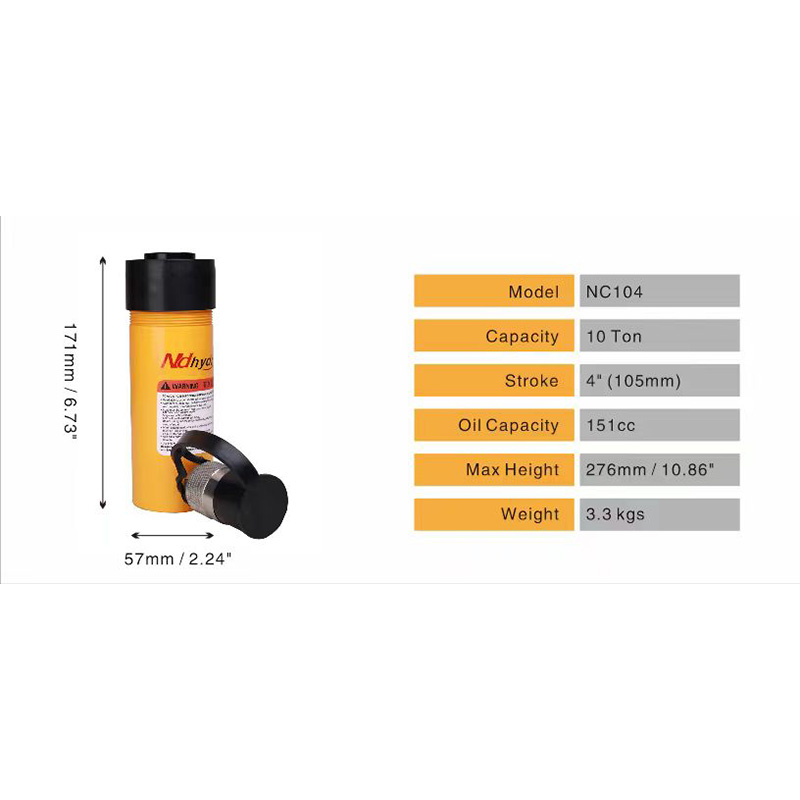

Technical Details

Item No.: NC104
Load Capacity ‎10 tons
Stroke ‎105mm (4”)
Collapsed Height 171 mm
Extended Height ‎276mm
Weight: ‎3.3kgs
Packing size: ‎22x16x8cm
