NC256 25Ton 6 Inch Single Acting Hydraulic Cylinder
1.25US Ton Capacity. 6″ Stroke

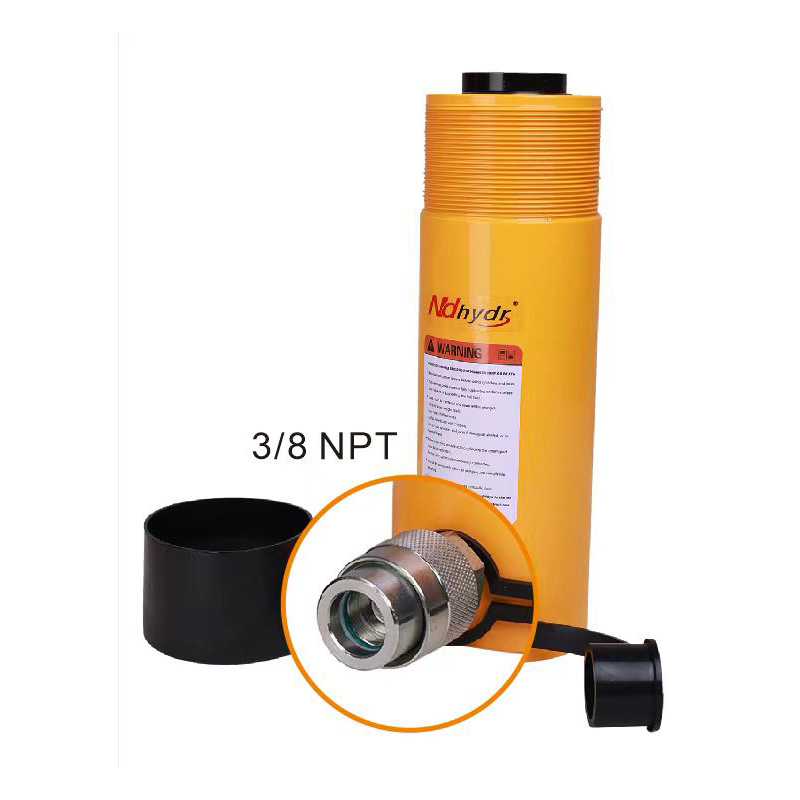

2.Connector Type: 3/8″ NPT quick hydraulic coupler with dust cap
3.Max Pressure 10,000 PSI. Single acting – Pressure extend, Spring return.
4.Durable baked enamel finish, beautiful and corrosion resistance.
5.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

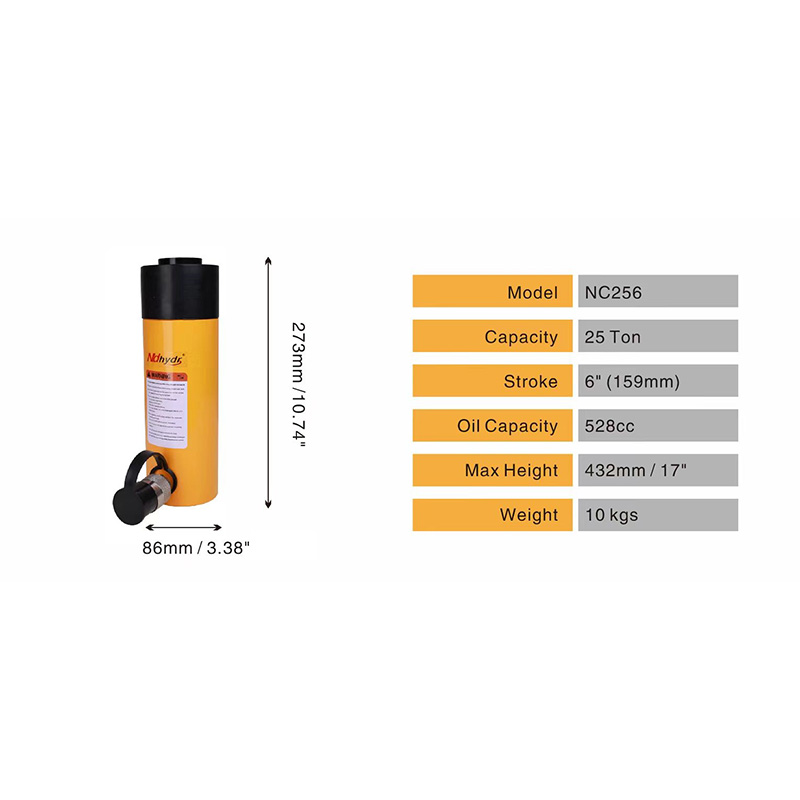

Technical Details
| Item No.: | NC256 |
| Load Capacity | 25 tons |
| Stroke | 159mm (6”) |
| Collapsed Height | 273 mm |
| Extended Height | 432mm |
| Weight: | 10.0kgs |
| Packing size: | 32x19x11cm |
