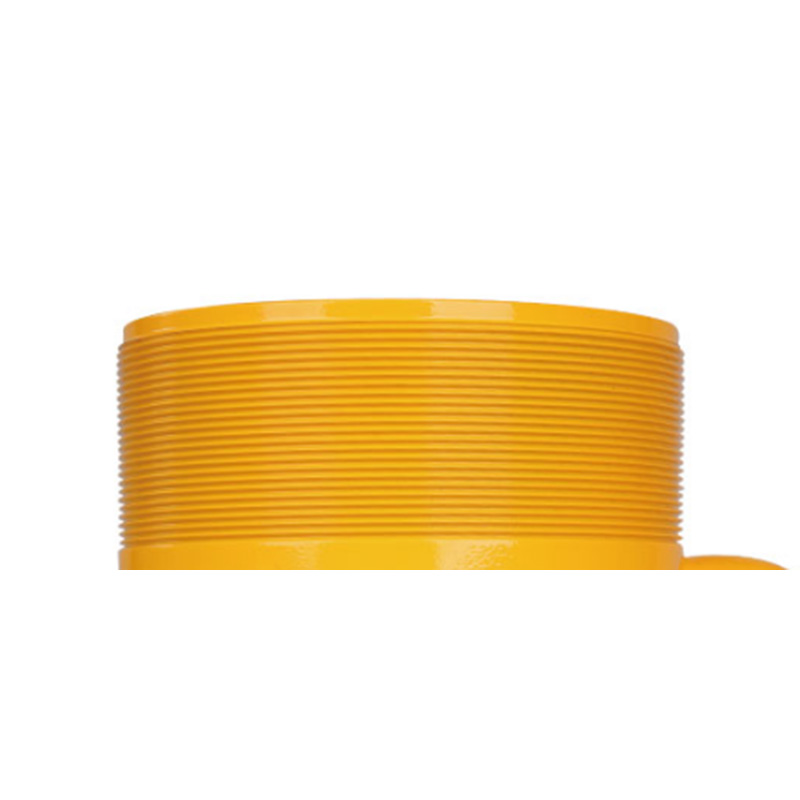

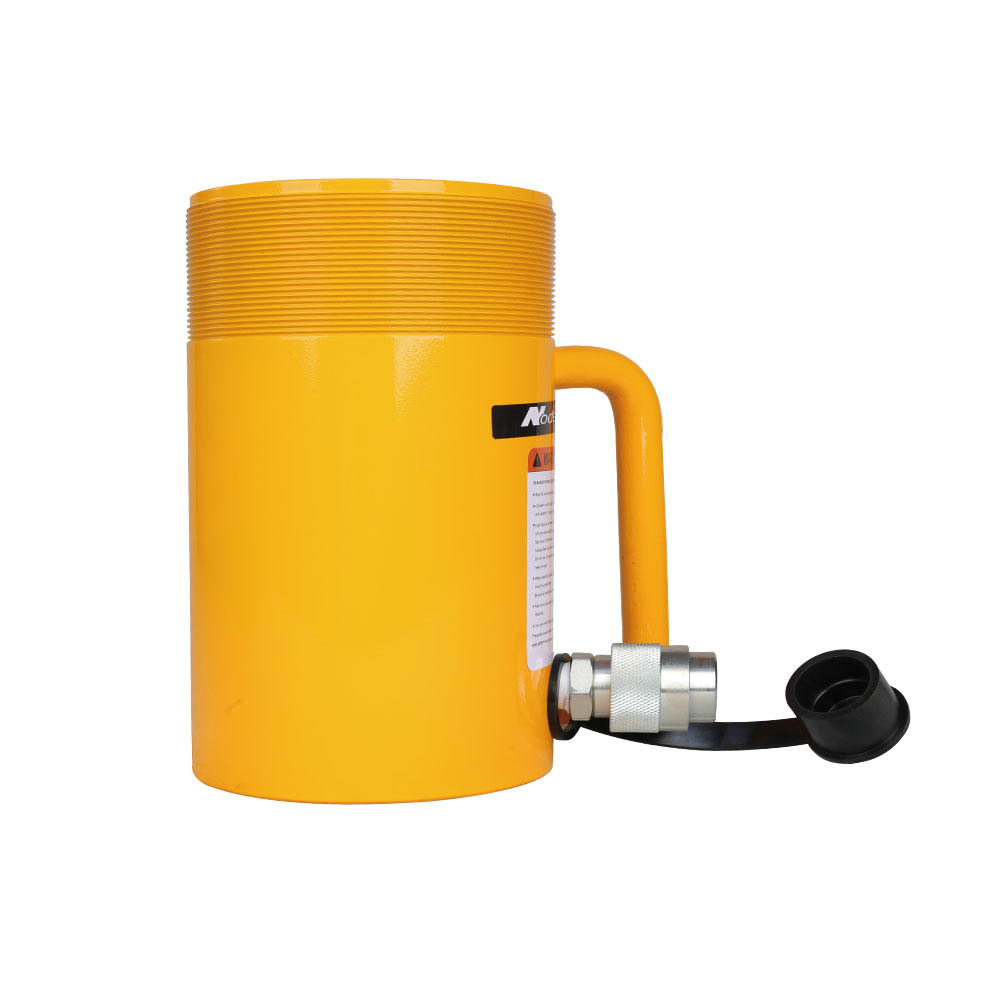

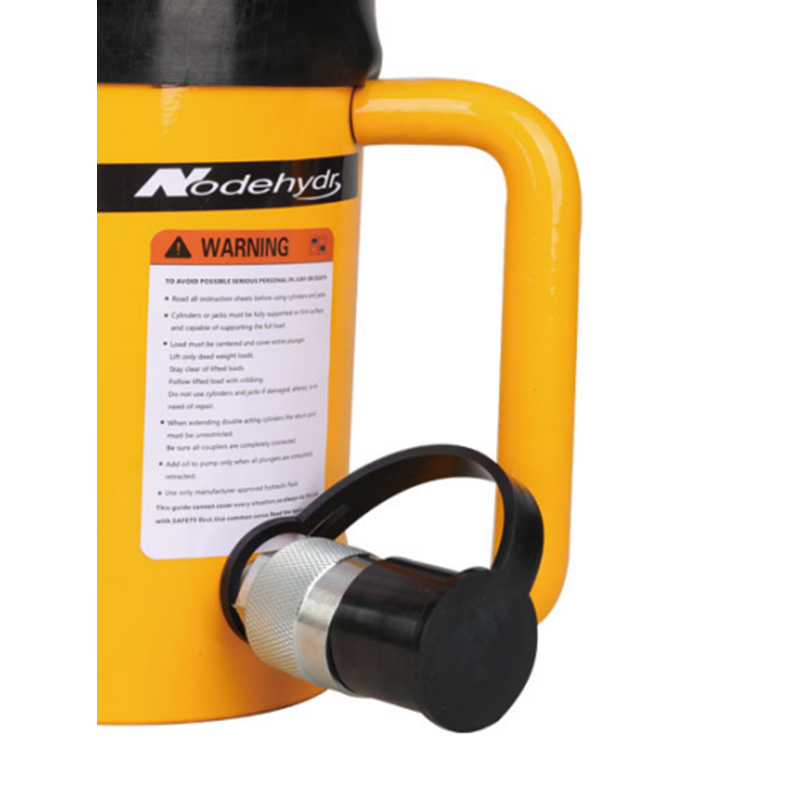

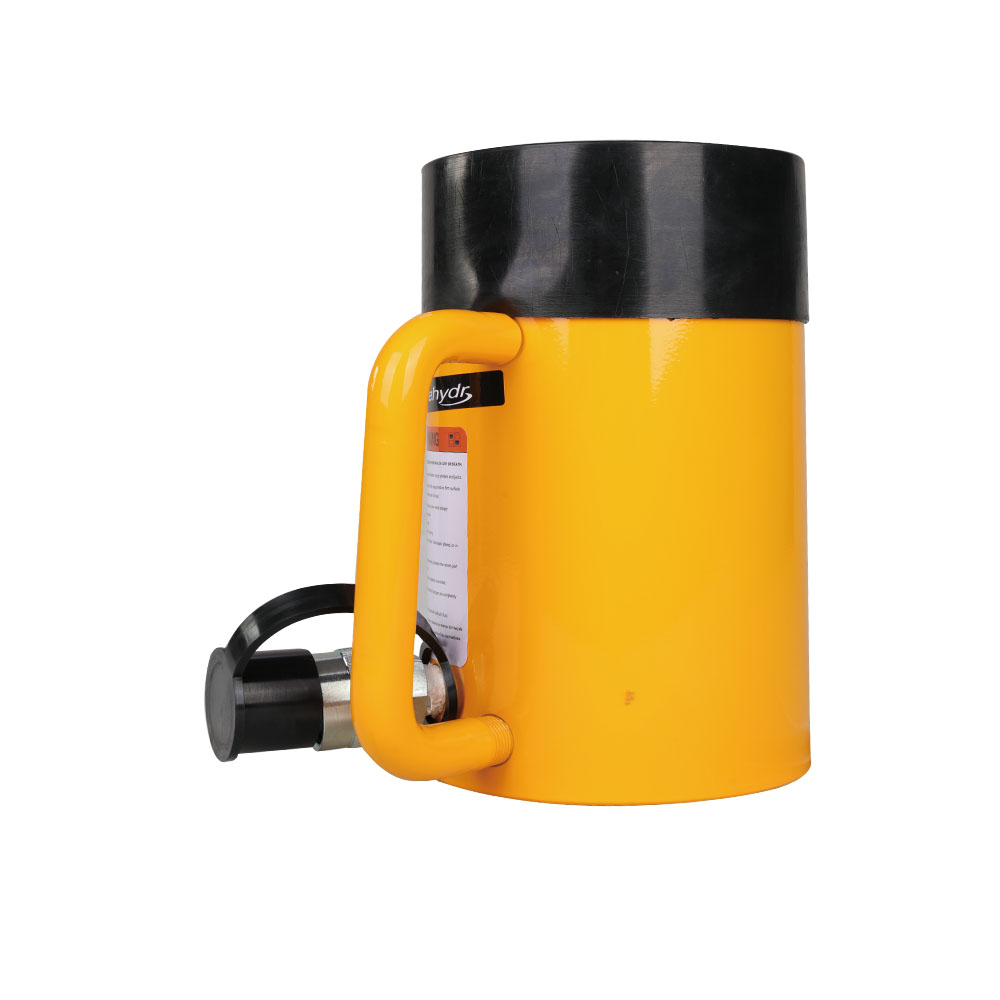

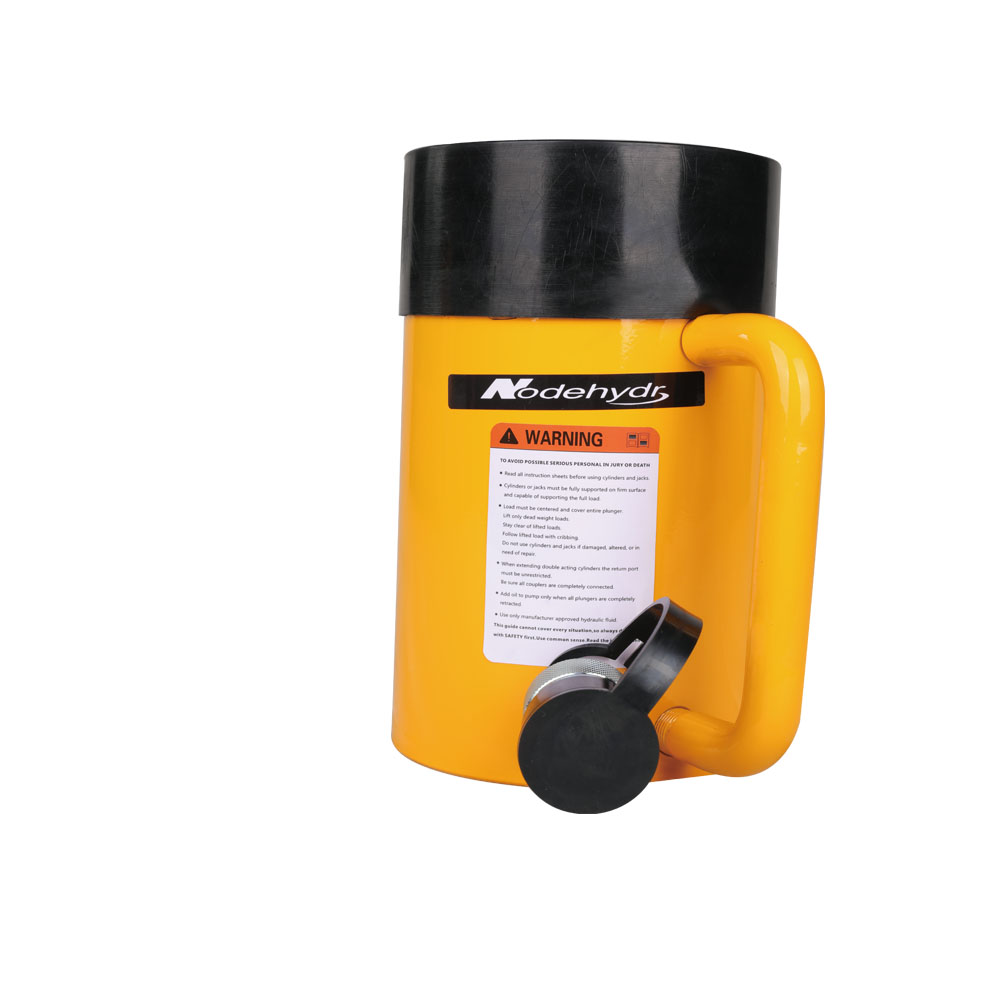

NC504 50Ton 4 Inch Single Acting Hydraulic Cylinder
1.50US Ton Capacity. 4″ Stroke
2.Connector Type: 3/8″ NPT quick hydraulic coupler with dust cap
3.Max Pressure 10,000 PSI. Single acting – Pressure extend, Spring return.
4.Durable baked enamel finish, beautiful and corrosion resistance.
5.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.
Technical Details
| Item No.: | NC504 |
| Load Capacity | 50 tons |
| Stroke | 102mm (4”) |
| Collapsed Height | 227 mm |
| Extended Height | 329mm |
| Weight: | 19.1kgs |
| Packing size: | 25x18x27cm |
