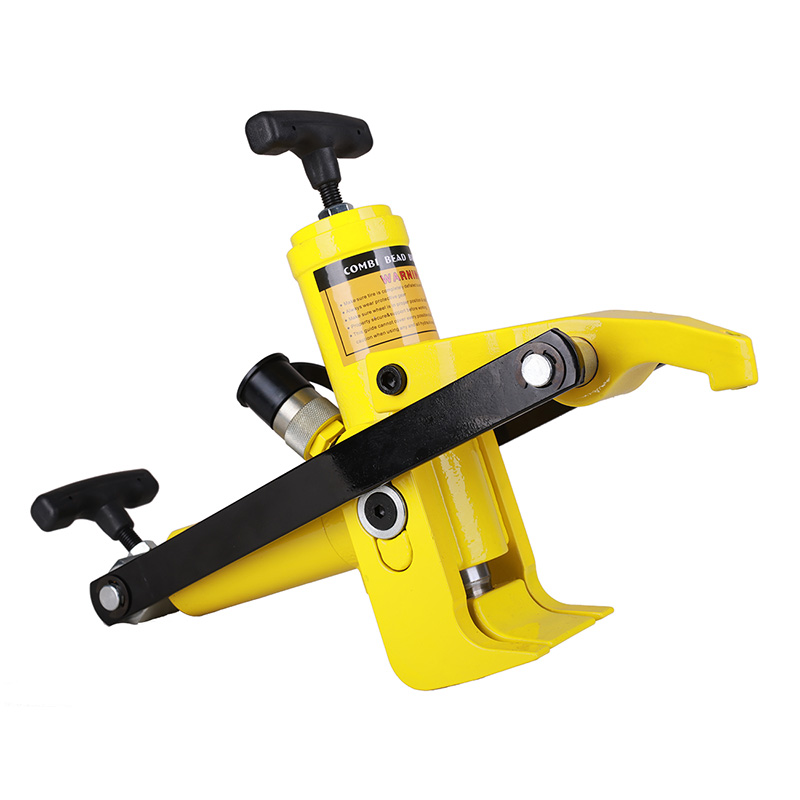

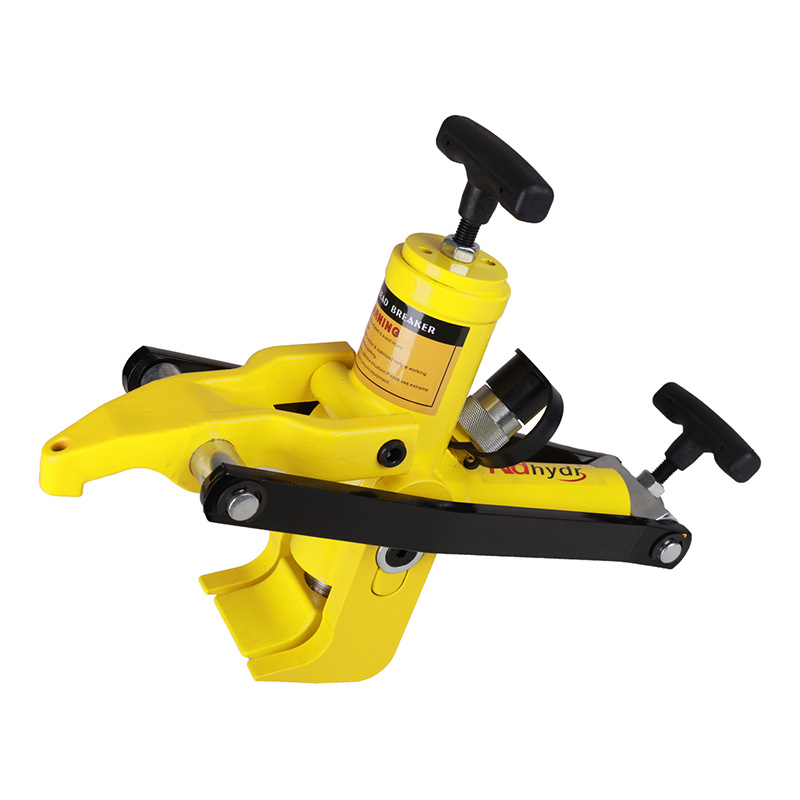

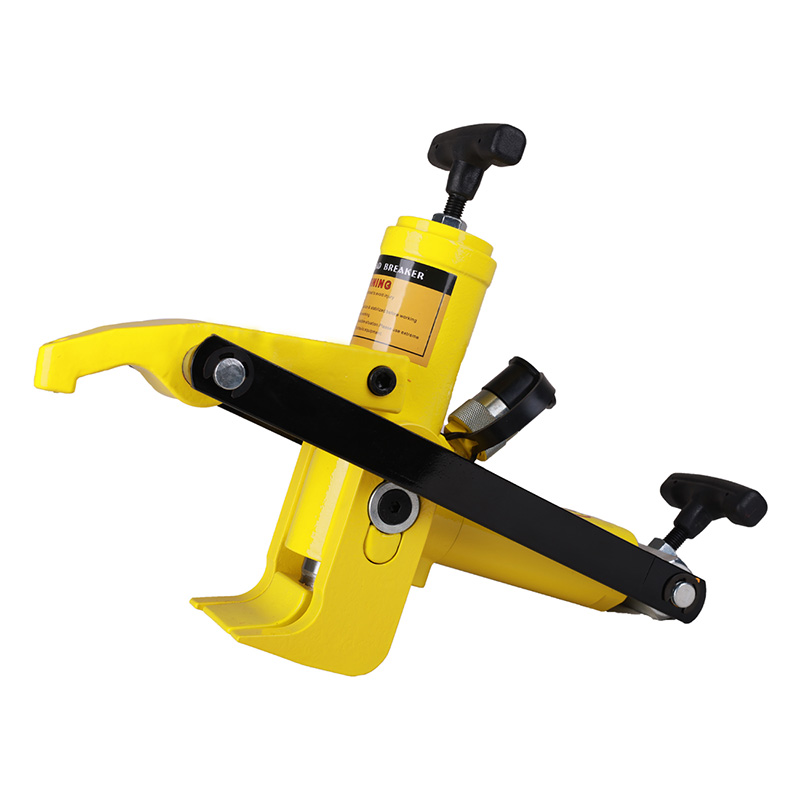

ND6100 Tire Bead Breaker for Tire Changing and Removal

Short Description:

The Combi Bead Breaker is used for breaking beads on commercial and agricultural tires. Works on any single, two and three piece wheels. This hydraulic tool will work with any 10,000 psi hydraulic pump. Breaks bead in seconds using 28,0000 lbs of force. The Combi Bead Breaker pushes the tire away from the wheel. The tool hydraulically clamps to the rim flange of the wheel, then once clamped a second hydraulic cylinder activates and extends the foot of the bead breaker pushing the tire bead off the rim. Great for farm, truck, tractor, grader, combine and skid tires. Designed to work on the front or back of wheel with no attachments or accessories.


Product Detail

Product Video

1.Will work with any 10,000 psi hydraulic pump

2.14 ton ram will break the toughest beads

3.Durable alloy steel construction

4.Teeth and pushing foot are replaceable

5.Works on any single, two and three piece truck or tractor wheels



Item No.                                                 ND6100
Capacity 10 Ton
Pressure 70 Mpa
Working Range of the Claw 131.5mm
Working Range of the pushing foot 95mm
Weight 15.5kgs
Packing Size 39×38.5×16 cm  1pc/ctn
