NHS-202 20Ton 2 Inch Hollow Single Acting Cylinder
1.20US Ton Capacity. 2″ Stroke

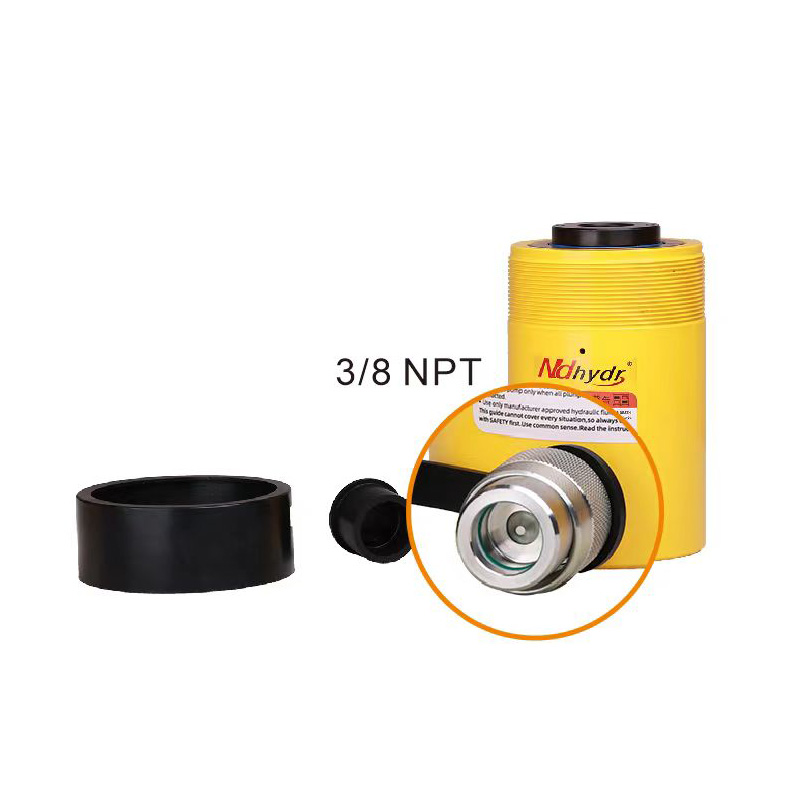

2.Connector Type: 3/8″ NPT quick hydraulic coupler with dust cap
3.Max Pressure 10,000 PSI. Single acting – Pressure extend, Spring return.
4.Durable baked enamel finish, beautiful and corrosion resistance.
5.This hydraulic jack cylinder has the advantages of small size, suitable for narrow space position. A great helper for riggers, fabricators, welders, and automotive body and frame shops in electric power, chemical industry, steel, Bridges, machinery, and other industries.

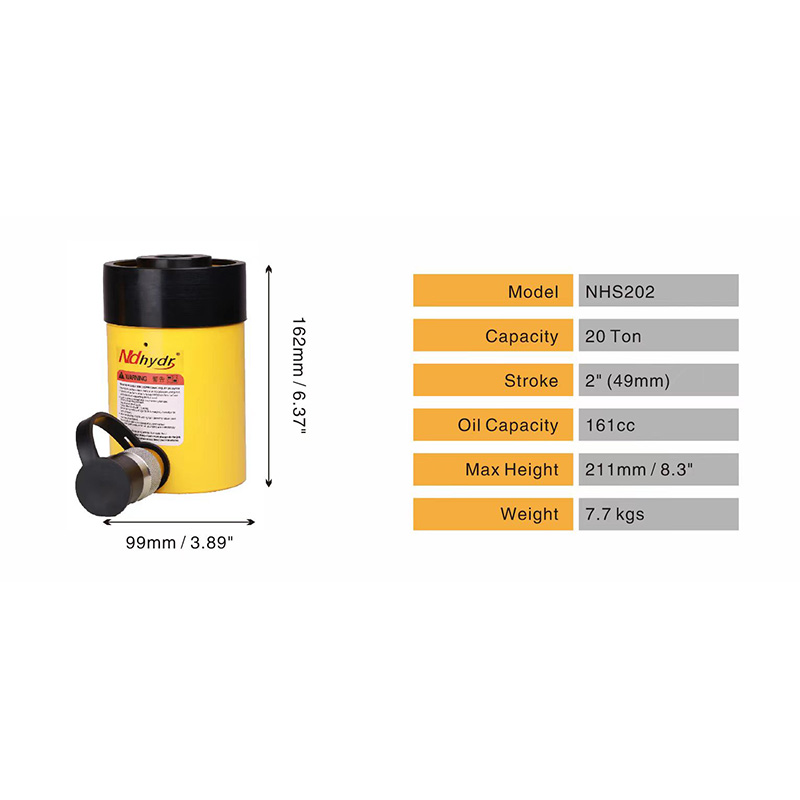

Technical Details
| Item No.: | NHS202 |
| Load Capacity | 20 tons |
| Stroke | 49mm (2”) |
| Collapsed Height | 162 mm |
| Extended Height | 211mm |
| Weight: | 7.7kgs |
| Packing size: | 23x19x13cm |
-
