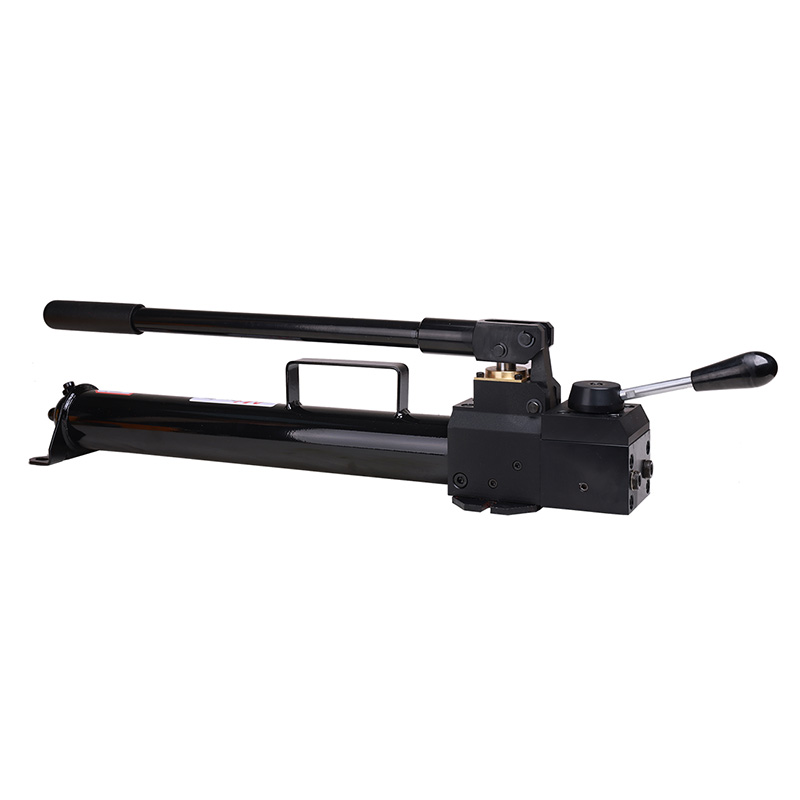

NLP002S Double Acting Hydraulic Hand Pump

Short Description:

Ndhydr NLP002s hydraulic hand pump is double acting pump, suitable for kinds of the hydrualic tools, which needs the power with 10,000psi.The hand pump is designed in two stage of high and low speed for quick oil output.Even if lack of electric power,It could still be operated conveniently.It is the same as the electric pump in any working pressure and function.Pressure could be stopped in middle.Inner designed over pressure safety unit protect hydraulic valve.

Send email to us Download as PDF

Product Detail

Product Video

1.Hydraulic pumps to drive hydraulic lifting cylinder ,crimping head, cutting heads and punch head.

2.Two stages speed action for rapid ram advantage.

3. Internal pressure relief valve protects against overloading the pump. Comfortable, easy and convenient operation, handle operation force is small.

4.A lifting hands included on the hydraulic hand pump, easy for carrying.

5.High-pressure hydraulic hand pump for 5 ton to 200 ton hydraulic ram cylinders or split unit hydraulic puller and other hydraulic applications.

Item No.	NLP002S
Oil Capacity	‎900 ml
Speed	‎Double
Pressure	‎‎70 Mpa
Output Oil Thread	‎NPT 3/8
Handle operating force	‎48 kgf
Item Weight	‎8.2 kgs
