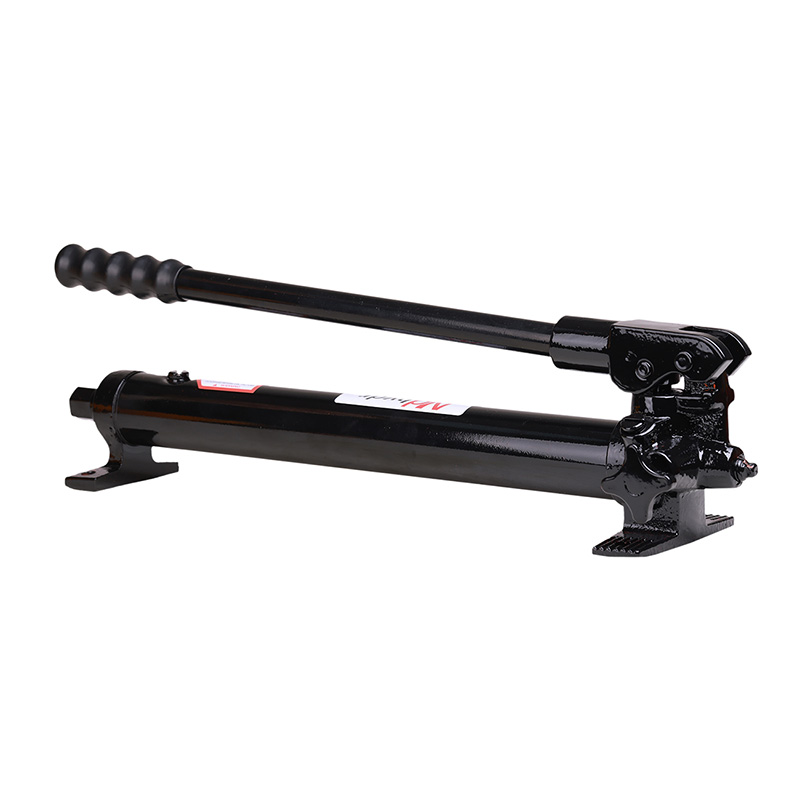

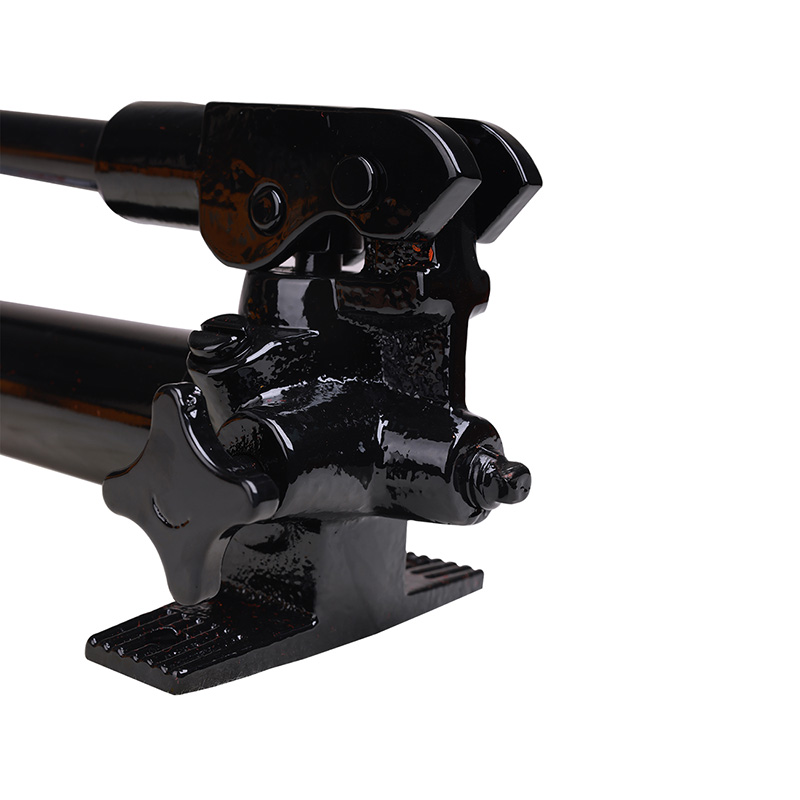

NLP004 Single Acting Hydraulic Hand Pump
Features:
1. Hydraulic pumps to drive hydraulic lifting cylinder ,crimping head, cutting heads and punch head.
2. Internal pressure relief valve protects against overloading the pump. Comfortable, easy and convenient operation, handle operation force is small.
3.The max output pressure for the hydraulic pump is 10000 psi, oil capacity is 500cc. The oil output thread is NPT 1/4, weight is 12.5lbs.
4.High-pressure hydraulic hand pump for 5 ton to 200 ton hydraulic ram cylinders or split unit hydraulic puller and other hydraulic applications.
| Item No. | NLP004 |
| Oil Capacity | 500 ml |
| Speed | Single |
| Pressure | 70 Mpa |
| Output Oil Thread | NPT 1/4 |
| Handle operating force | 35 kgf |
| Item Weight | 5.7 kgs |
