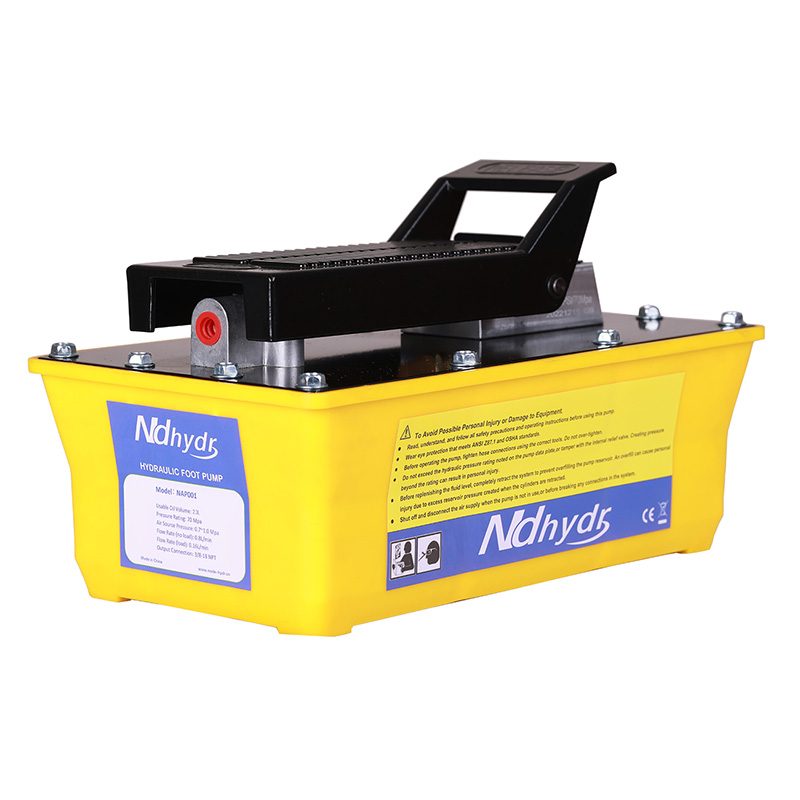

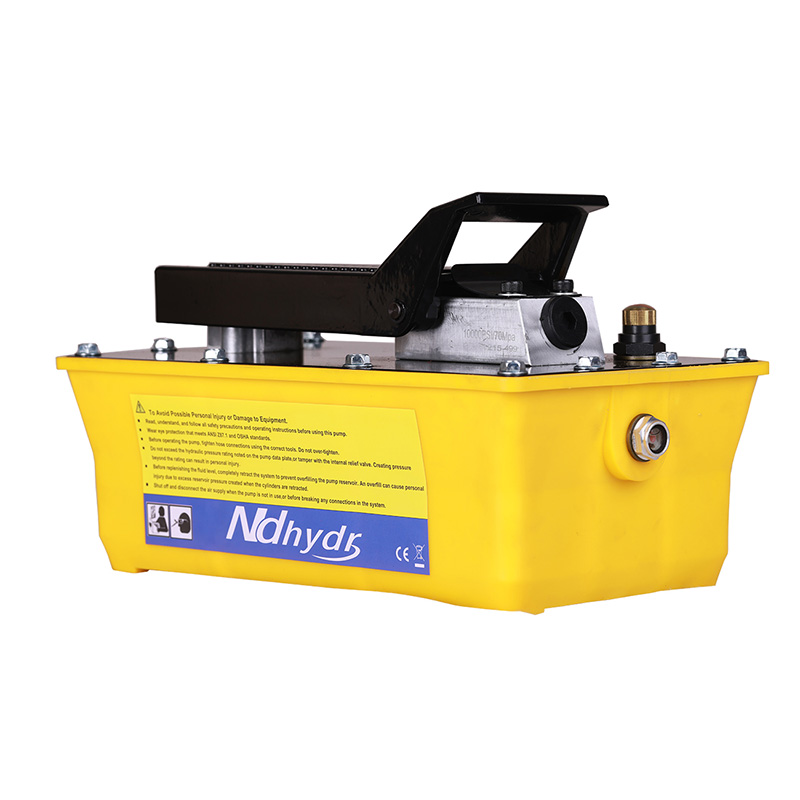

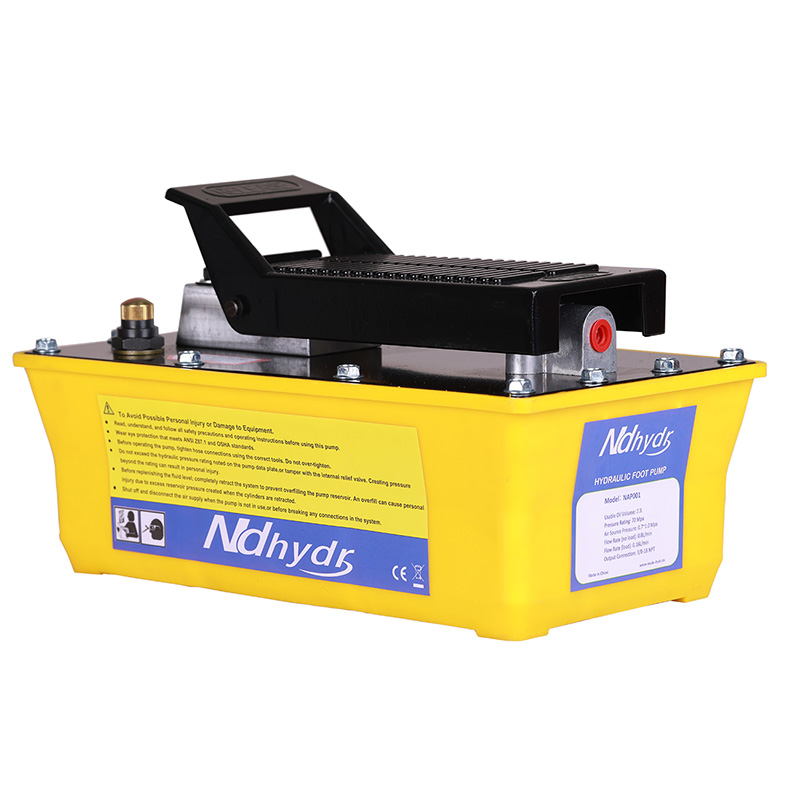

2.3L Air Hydraulic Pump with Plastic Reservior
1. For use with a variety of rams, presses and hydraulic tools operating up to 10,000 psi
2.Air exhaust muffler for quiet pumping of air motor
3.Air and oil inlet filters for reducing risk of damage from contamination.
4.Internal loading limiting device to prevents overload.
Specification:
| Item NO. | NAP001 |
| Usable Oil Volume | 2.3L |
| Pressure Rating | 70Mpa ( 10,000psi) |
| Air Source Pressure | 0.7~1.0 Mpa |
| Flow Rate | 0.8 ( no load) |
| 0.16 ( load) | |
| Reservior Construction | Plastic |
| Output Oil Thread | 3/8-18 NPT |
| Air input Thread | 1/4-18NPT |
| Weight | 8.3kgs |
Application:
| -. APPLICATION: | |
| 1.) Heavy Machinery Rigging and Moving | |
| 2.) Auto Repair Oil Rigging | |
| 3.) Machine Maintenance | |
| 4.) Oil Drilling platforms |
